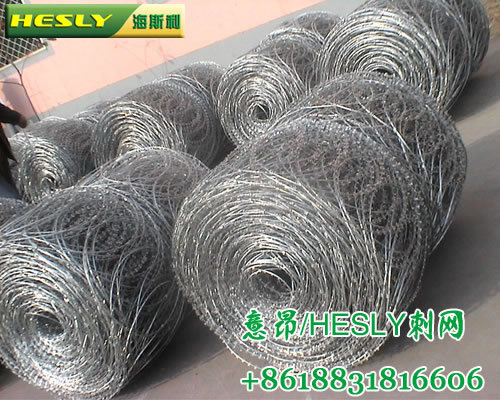

Galvanized Razor Strip Flatwrap is a modification of the spiral razor security barrier,adapted for use in more crowded conditions. Flat security barrierconcertina as spiral security barrier, also made of reinforcedbarbed tape concertina. Flat razor barrier security is differentfrom razor wire concertina that the coils located in one plane,which makes the design much more compact. And its adjacent coilsfastened together with staples from galvanized steel. Providing ahigh protective properties, flat safety barrier razor is morecompact to use and less aggressive, which contributes to itswidespread use or various objects in urban environments.

Flat razor wire is designed to protect facilities in urban areas and when you cannot use spiral razor security barrier because of its size. Flatrazor mesh barrier security can be installed on all types of fencesand barrier, in addition, a fence may be constructed of severalflat strips of barbed tape.

Flat razor mesh security barrier is more economical than concertina razor security barrier, becauseits production requires significantly less concertina wire, so inthose cases where no special requirements for security of enclosingan object, the flat razor barrier security can be a good choice.

Obstruction of razor flat wrap coils barrier properties is veryhigh, although somewhat lower than that of concertina razor coilsbarrier. Razor wire flat wrap coils is able to maintain theirproperties after a barrage and even a few snacks in differentplaces. An important feature of the flat concertina wire is that,as a flat structure, it does not exceed the dimensions of thefence, has a less aggressive appearance, which is more preferableto create barriers in public places.
three versions: 900/22, 600/22 and 500/24.

Flat concertina 900/22: The flat spiral barrage 900 mm with a density of stacking turns4.2 turns at 1 meter. The coils are connected in 13 points staplingstaples. Staples are made of galvanized steel. The flat spiralfence has high resistance to destruction. Even with the fullcross-section cutting it does not change the geometry of obstacles,if the armature of the fence is still intact. Flat barrierconcertina has a nice appearance, easy to mount the brackets andrebar wire.

Flat concertina 600/22: The flat spiral barrage 600 mm with a density of stacking turns4.2 turns at 1 meter. The coils are connected in 14 points staplingstaples. Staples are made of galvanized steel. Coil length 50meters, dimensions: width 700 mm, the diameter of 1500 mm. It isrecommended to install a fence along the edge of concrete slabs orgrid.

Flat razor wire 500/24: The flat spiral barrage 500 mm with a packing density of 4.2turns the coil on a meter. The protective is similar to the 600/22.

Specifications:
1) Inside wire: 2.50mm (-0.00, +0.10mm), tensile strength:160kg/mm2 (min).
zinc plate: 200gr/m2 (min) hot dipped galvanized.
Outside sheet: 0.50mm (-0.00, +0.10mm) hot dipped, bright, shining.

2) Flat wrap razor wire
Height: 90cm
Weight: 1kg/m (min)
Coil length: 16m coils
Coil weight: 16 kg
Packing: each coil wrapped with paper and hessian cloth.

3) 45cm circle, cross type, 56 loops, Ideal opening 6-7m,Max.opening: 8.5-9.5m, 3 tie clips, Packing: each coil wrapped withpaper and hessian cloth.
Coil weight: 7kgs.
